In this final project in the AutoCAD 3D course at Olympic College in Bremerton, WA, we were assigned the task of creating a mechanical design with more than two moving parts. At this point in time, I really wanted to challenge myself and test my knowledge of the software by pushing the envelope with my abilities using the program.
I decided to create a replica of R2D2. It would consist of multiple parts that would move; its head would swivel and rotate about the trunk, the arms would also rotate and move, and the wheels beneath the feet of the robot would also move.

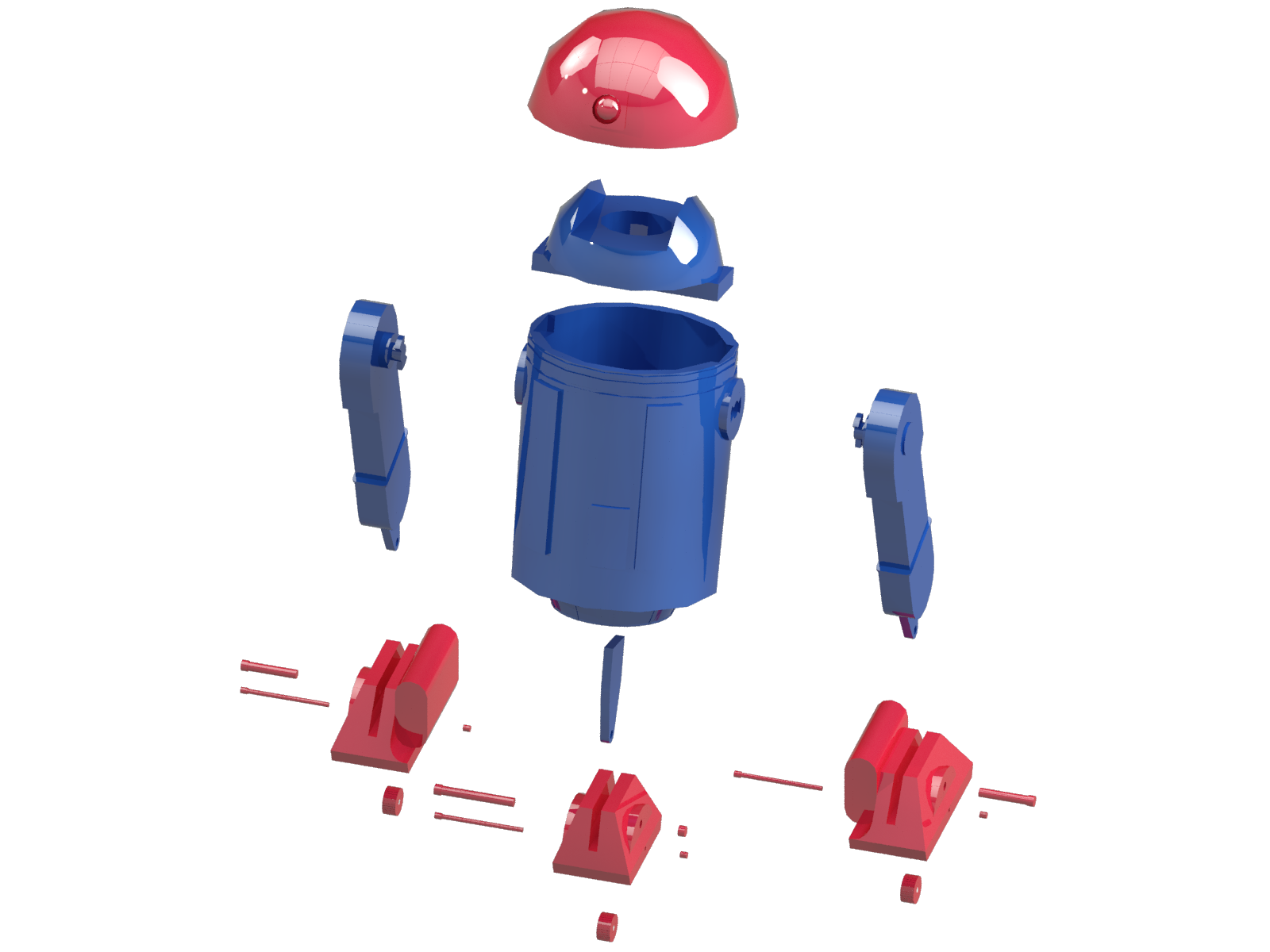

R2E7 Exploded View
R2E7 Fly By Animation

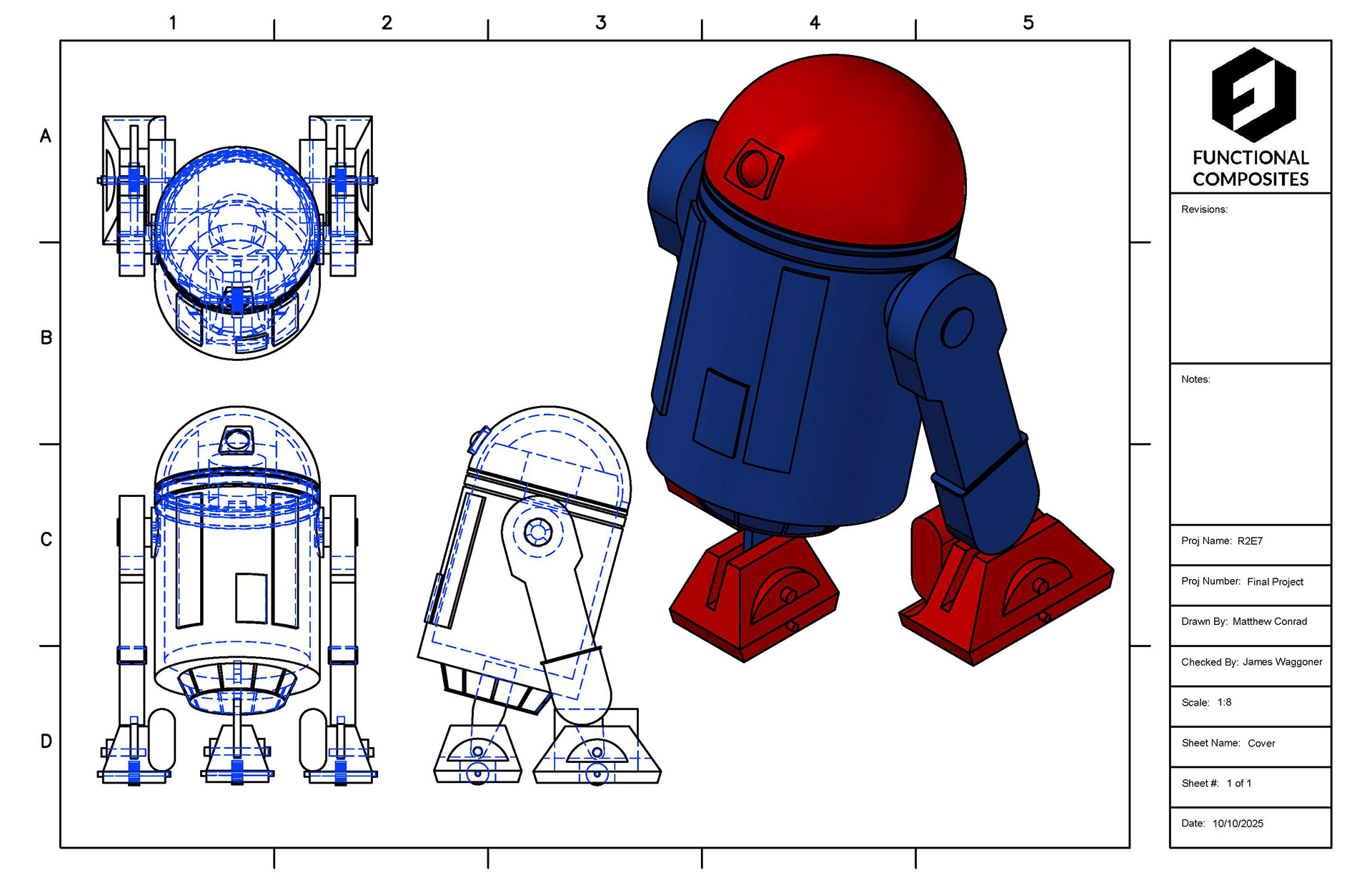

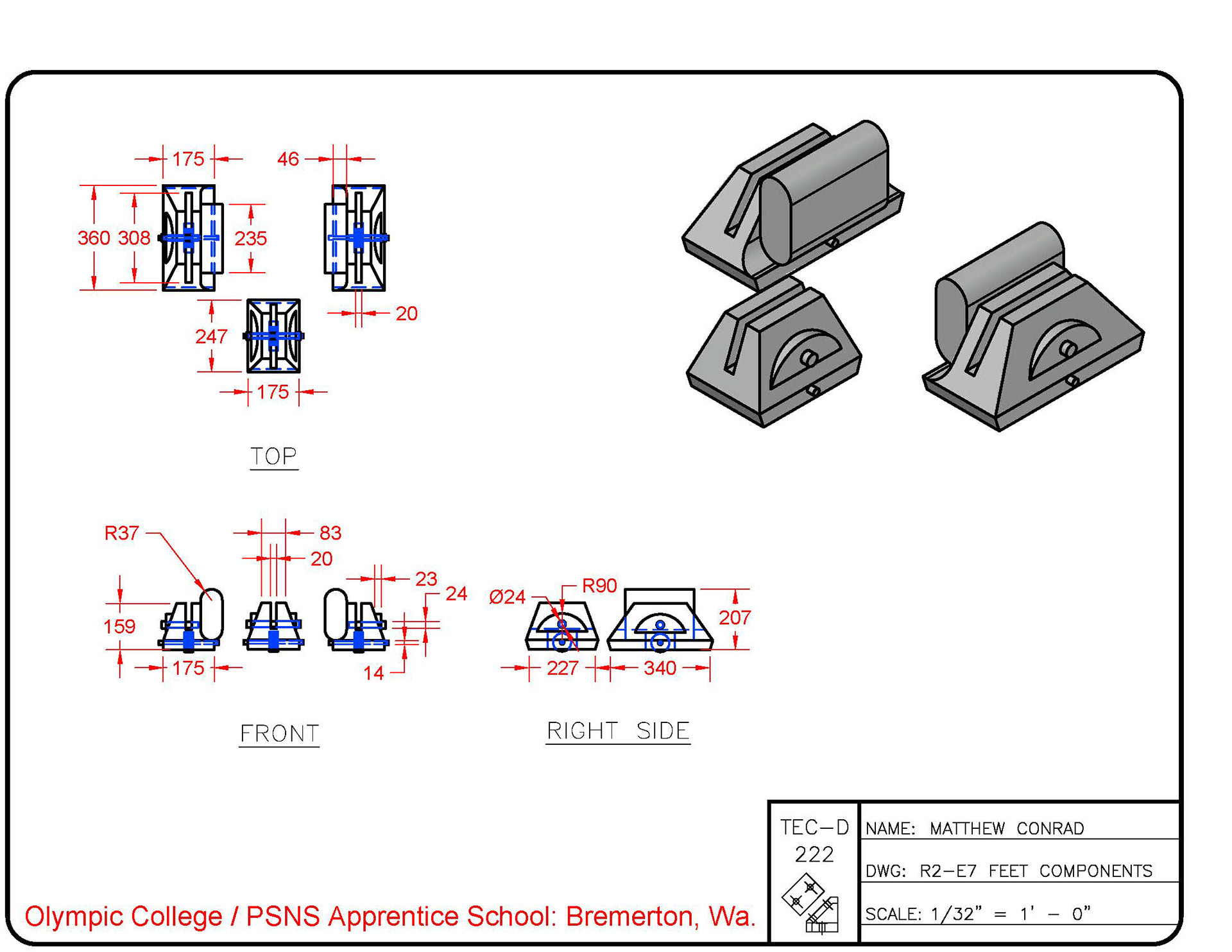

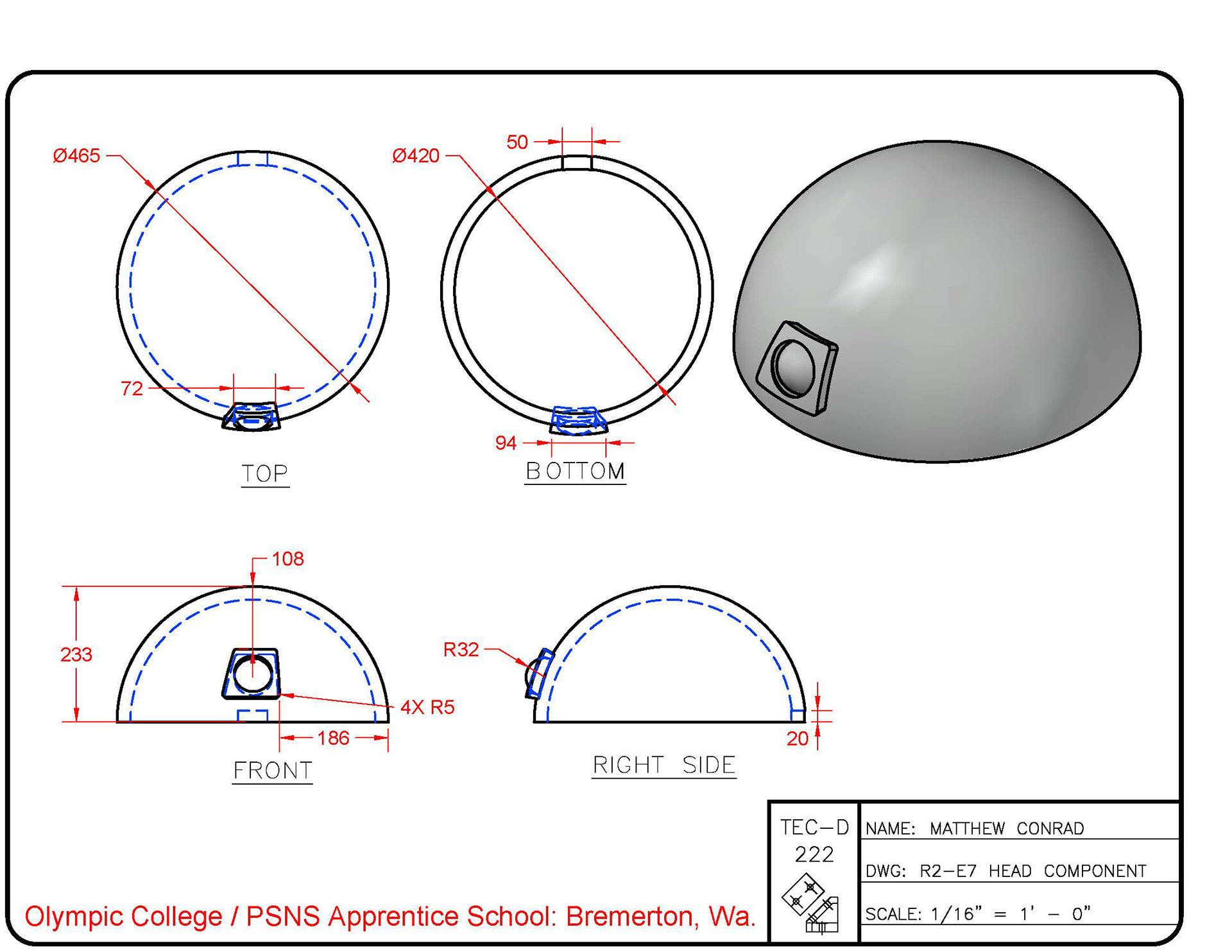

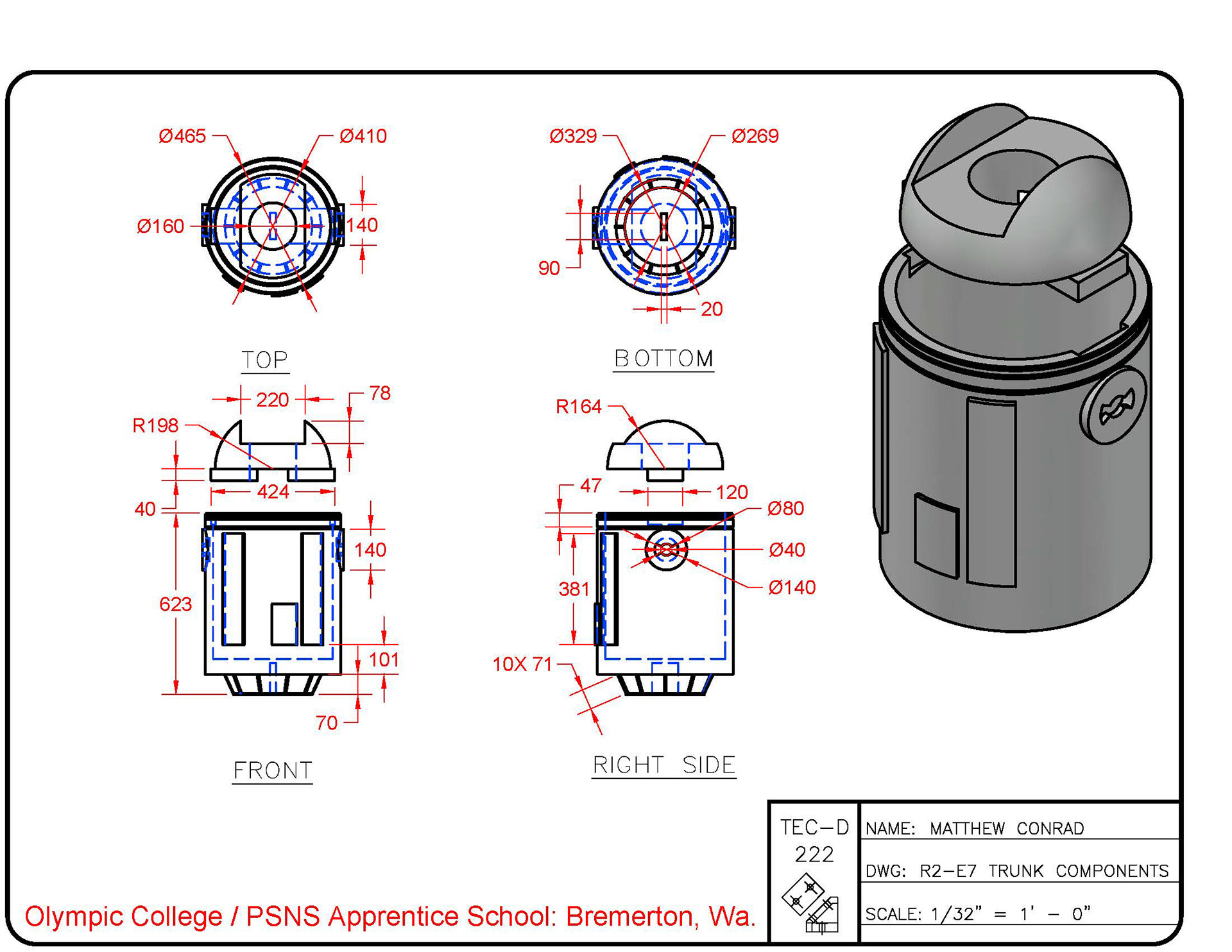

R2E7 Design Documentation Example with Isometric Views
