In this project in the Introduction to SolidWorks course, we were tasked to create a tool post in the shape of a square, assembled from multiple separate parts: a body, base plate, stud, knob, clamping nut, bolt, handle, set screws, and a ball & spring. The completed assembly drawing is at the very bottom of the page.

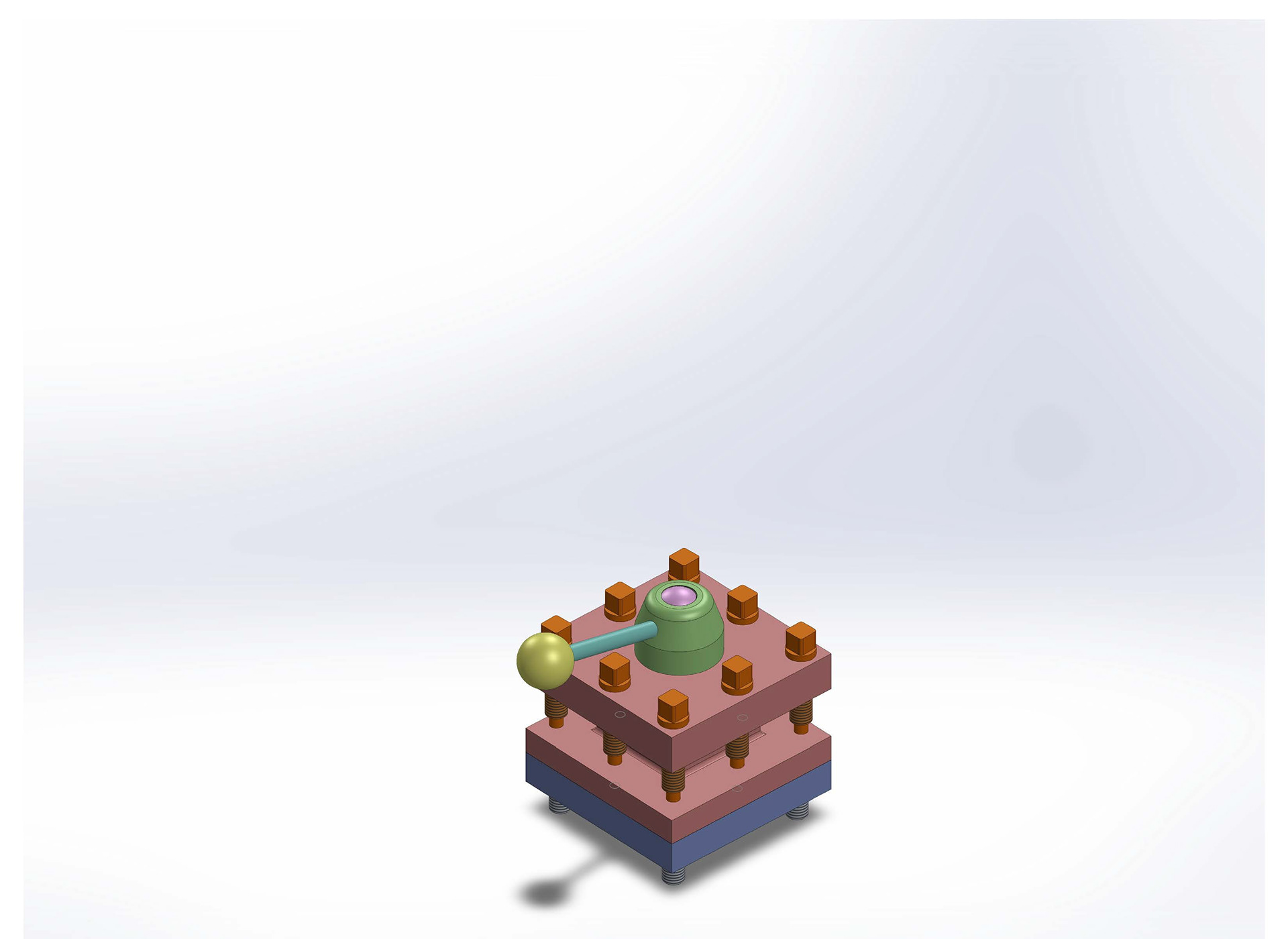

Square Tool Post - Collapsed View

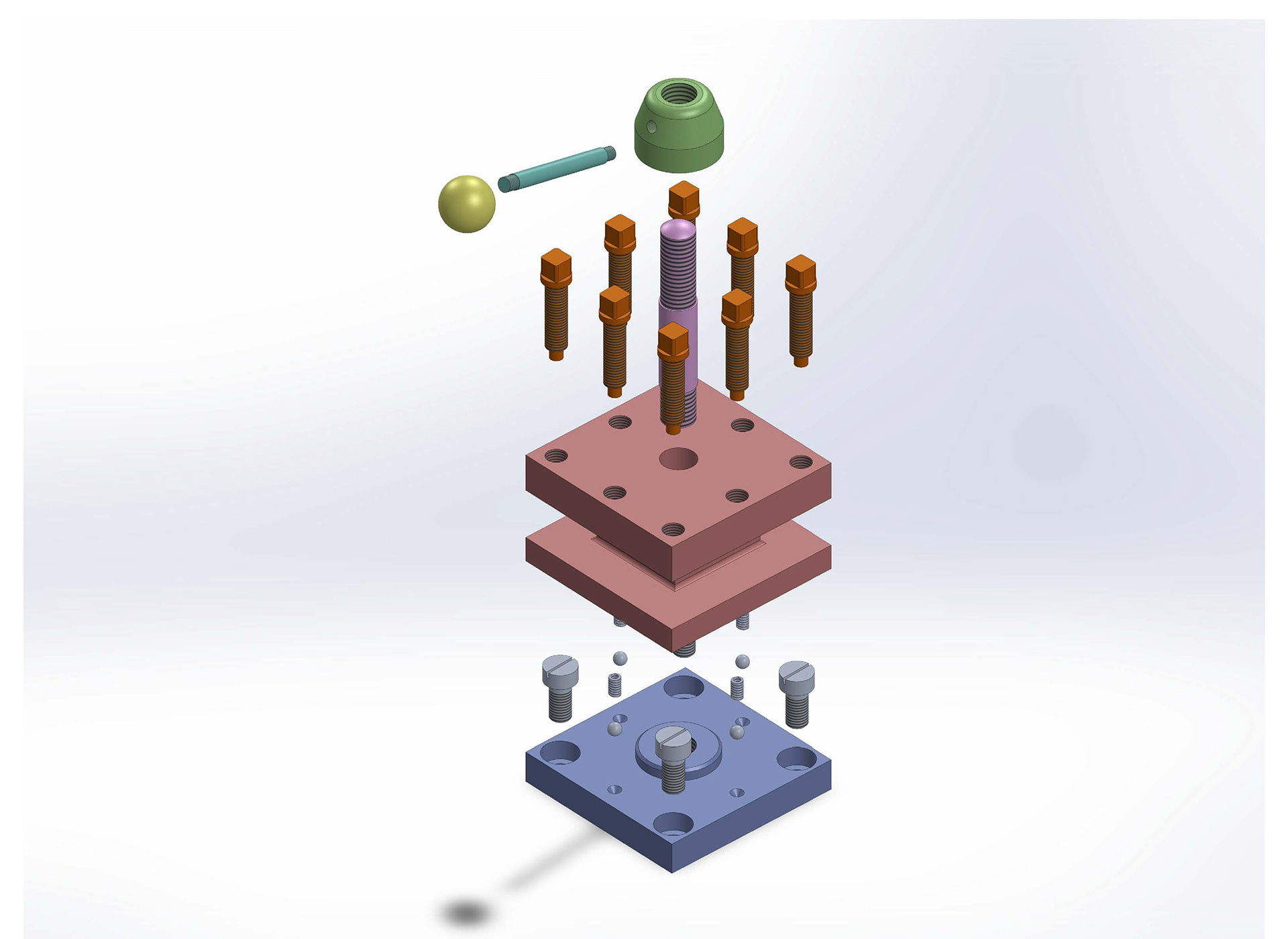

Square Tool Post - Exploded View

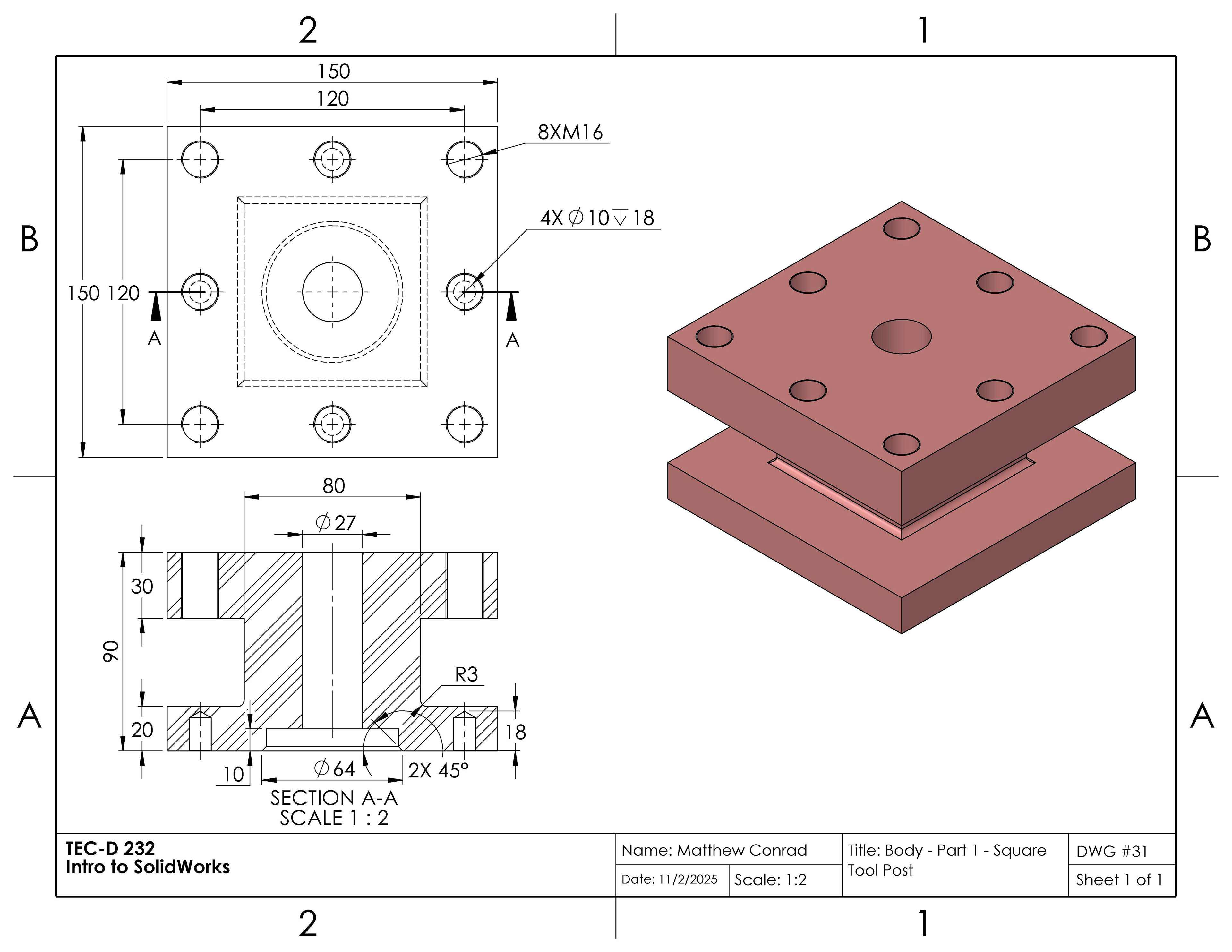

Square Tool Post - Body

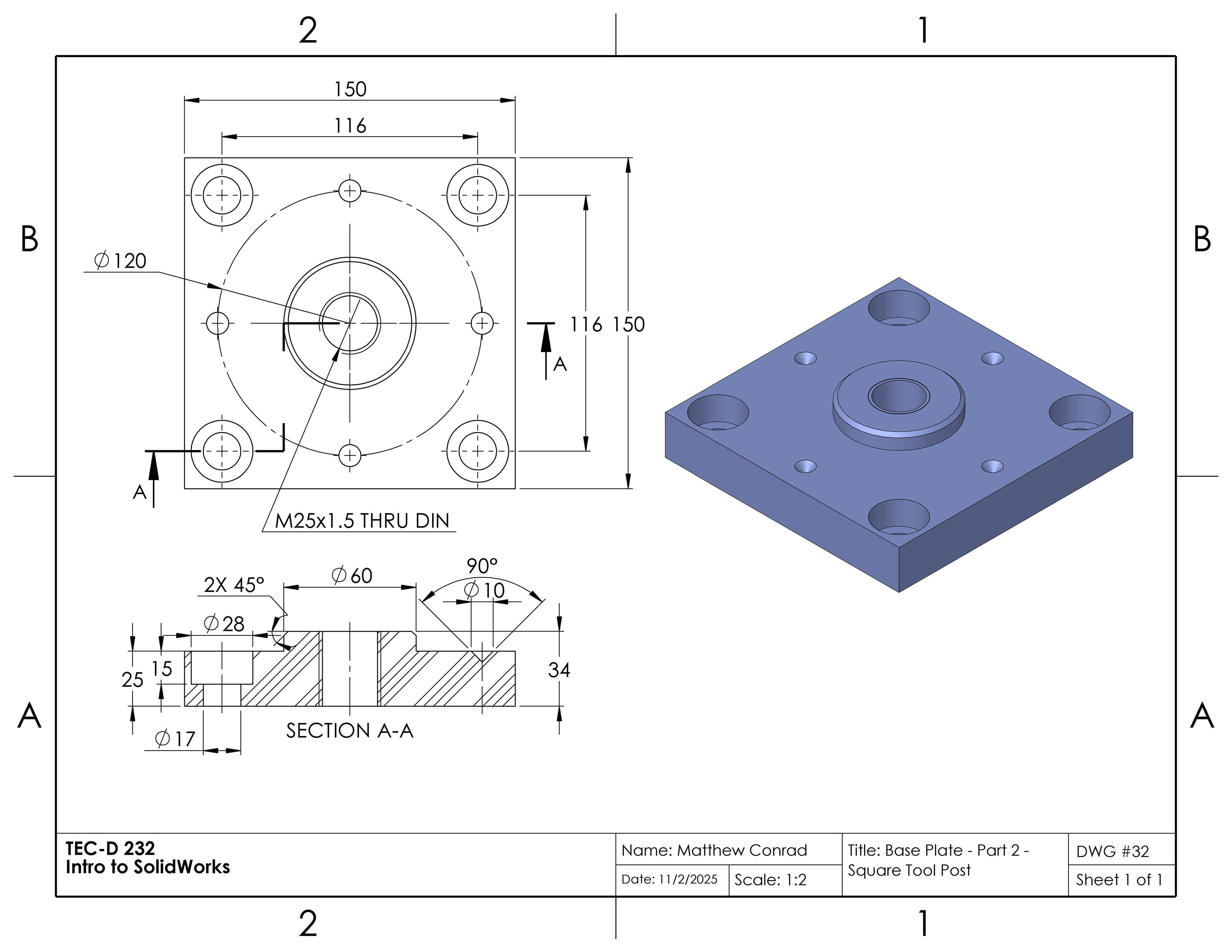

Square Tool Post - Base Plate
Square Tool Post - Stud
Square Tool Post - Knob

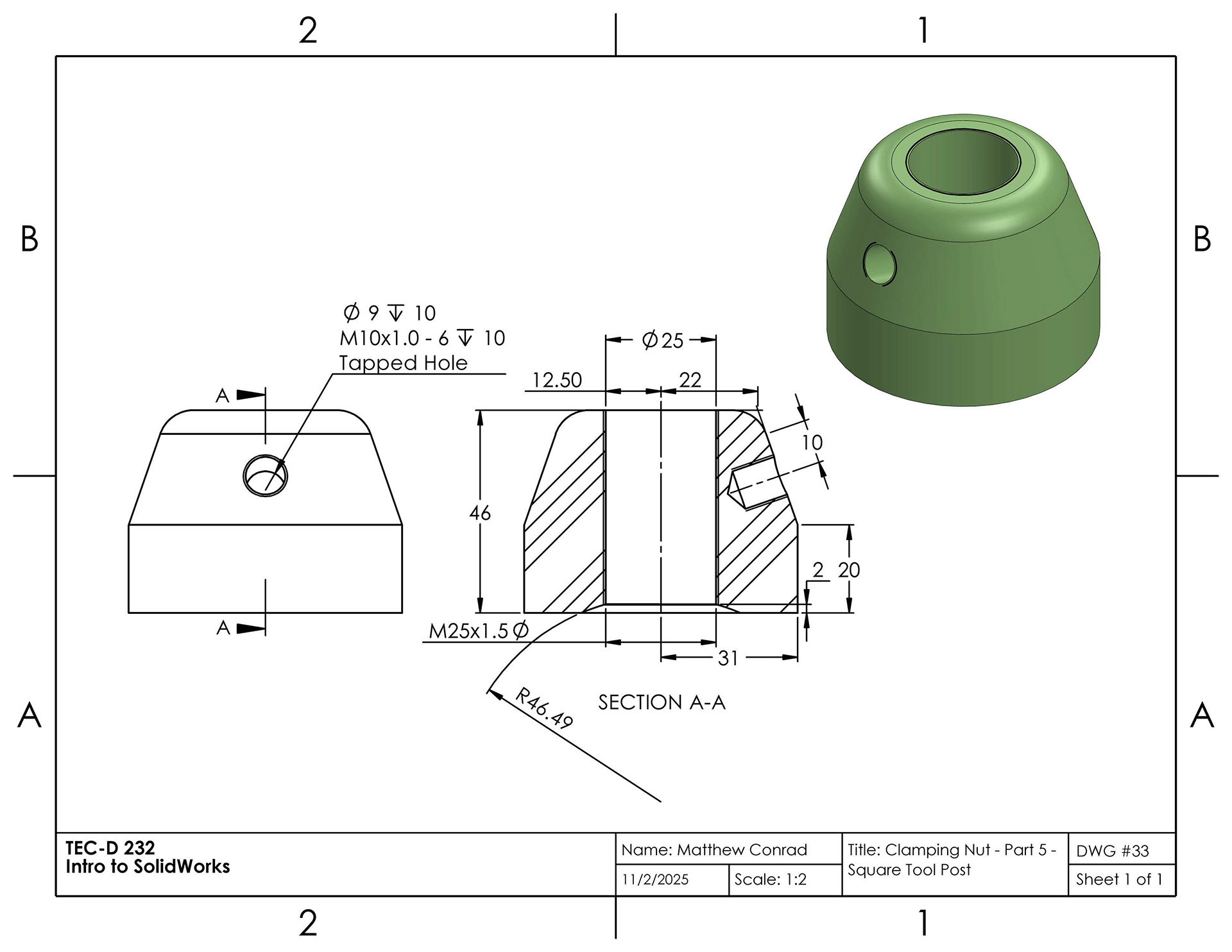

Square Tool Post - Clamping Nut

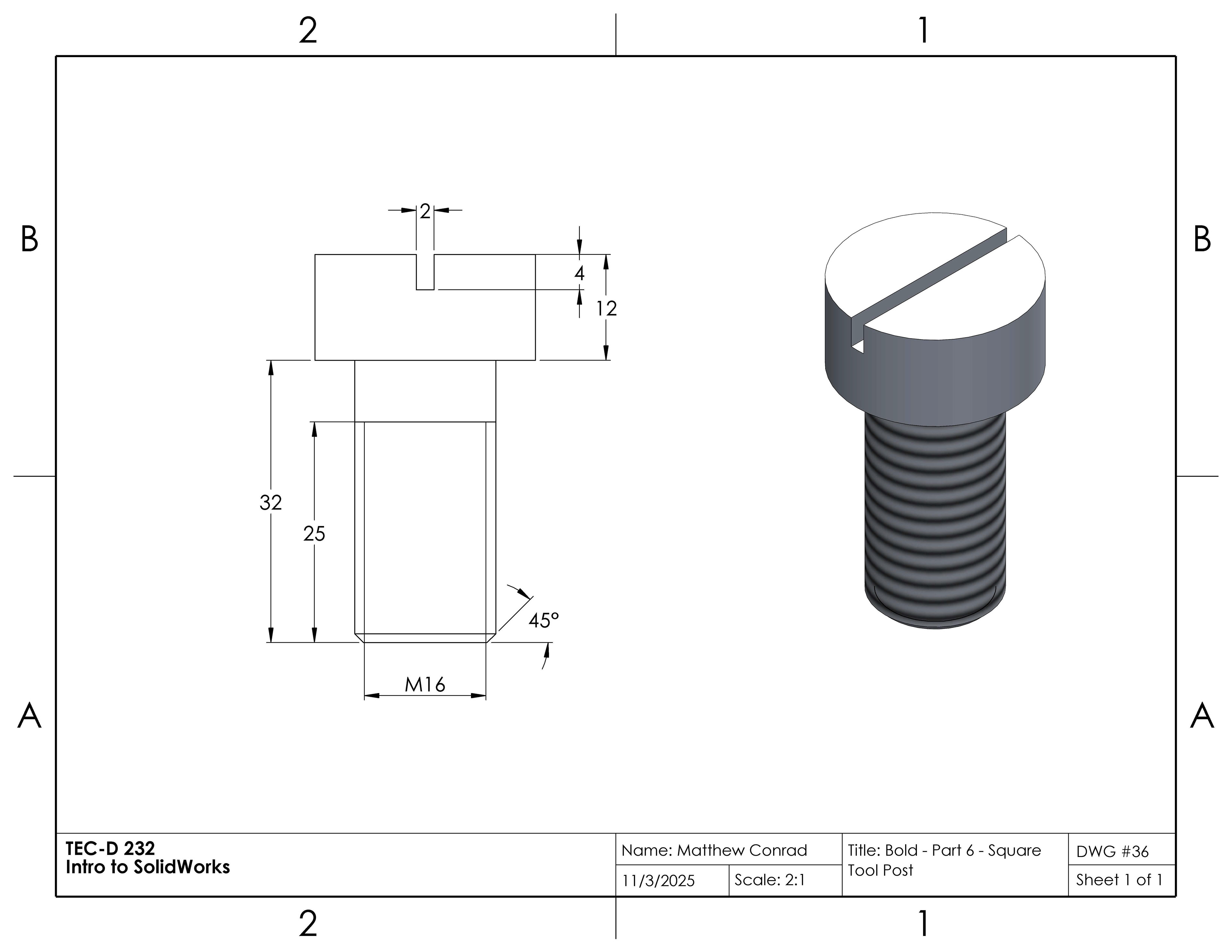

Square Tool Post - Bolt
Square Tool Post - Handle

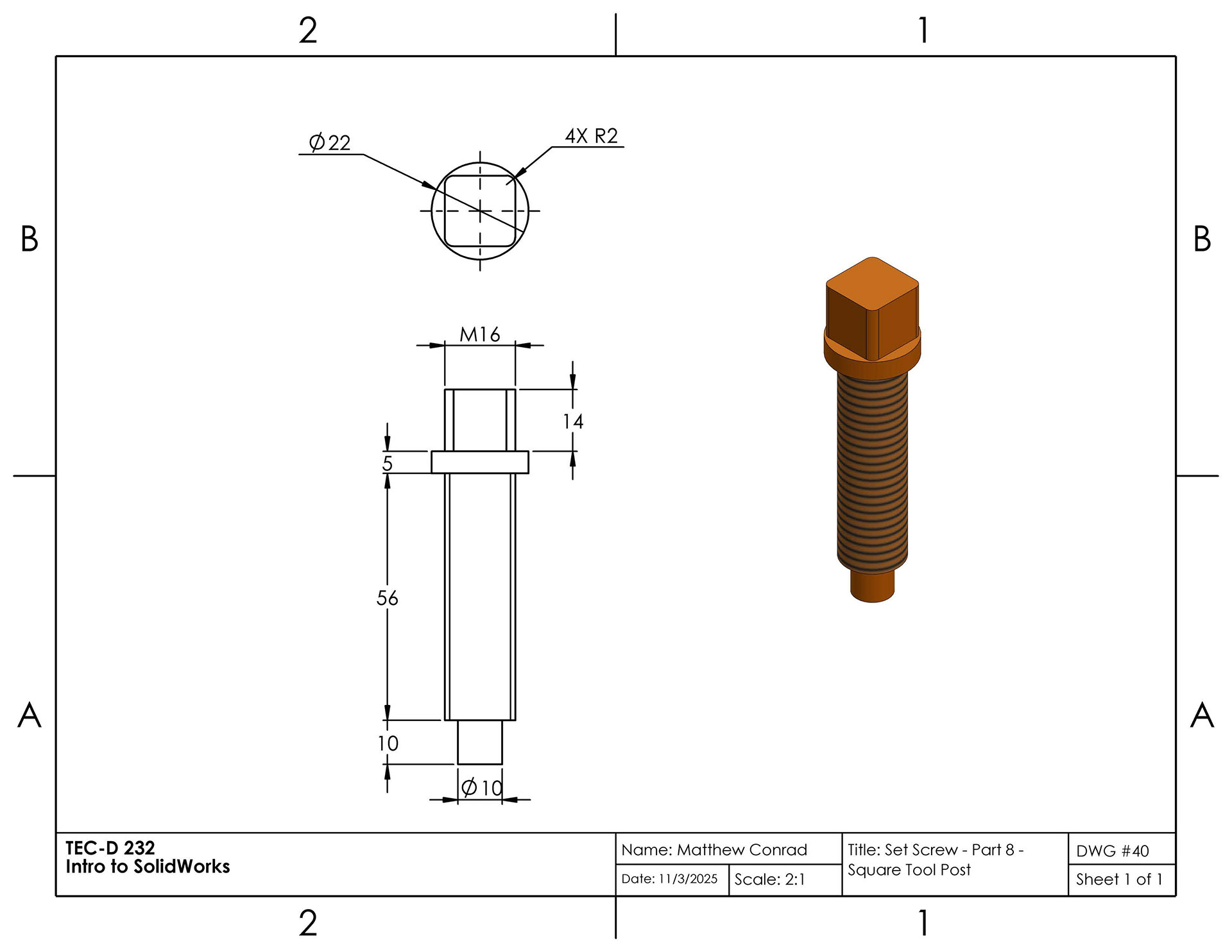

Square Tool Post - Set Screw

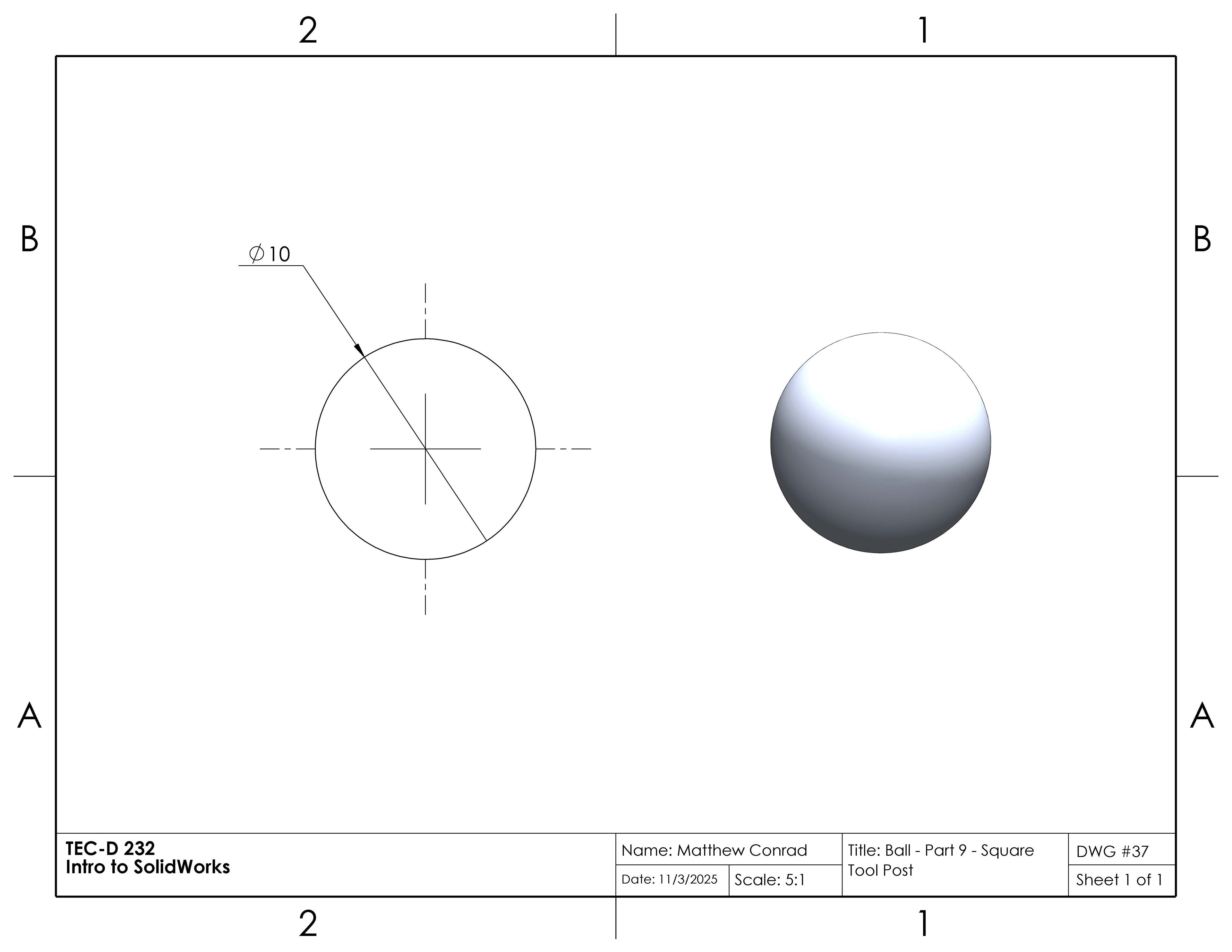

Square Tool Post - Ball

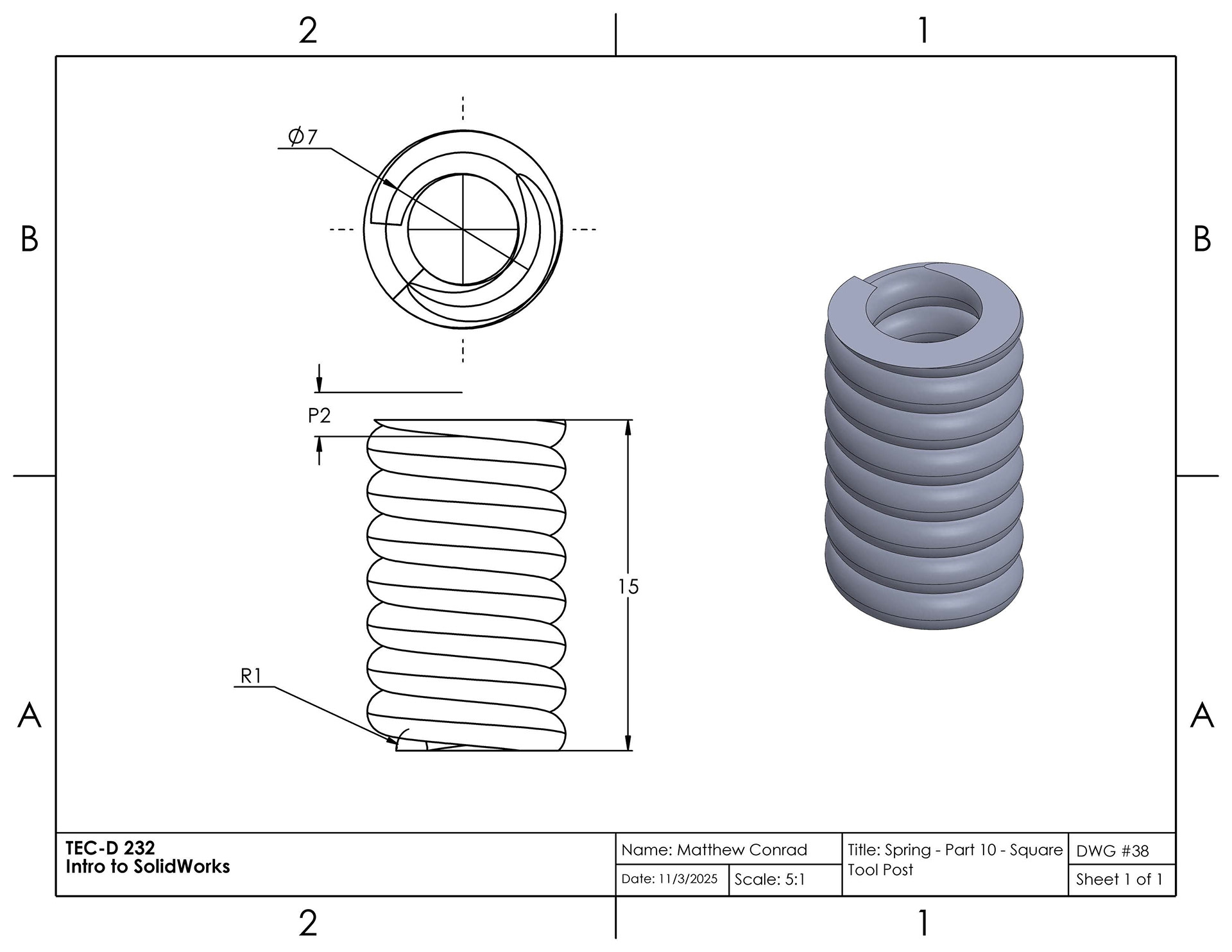

Square Tool Post - Spring

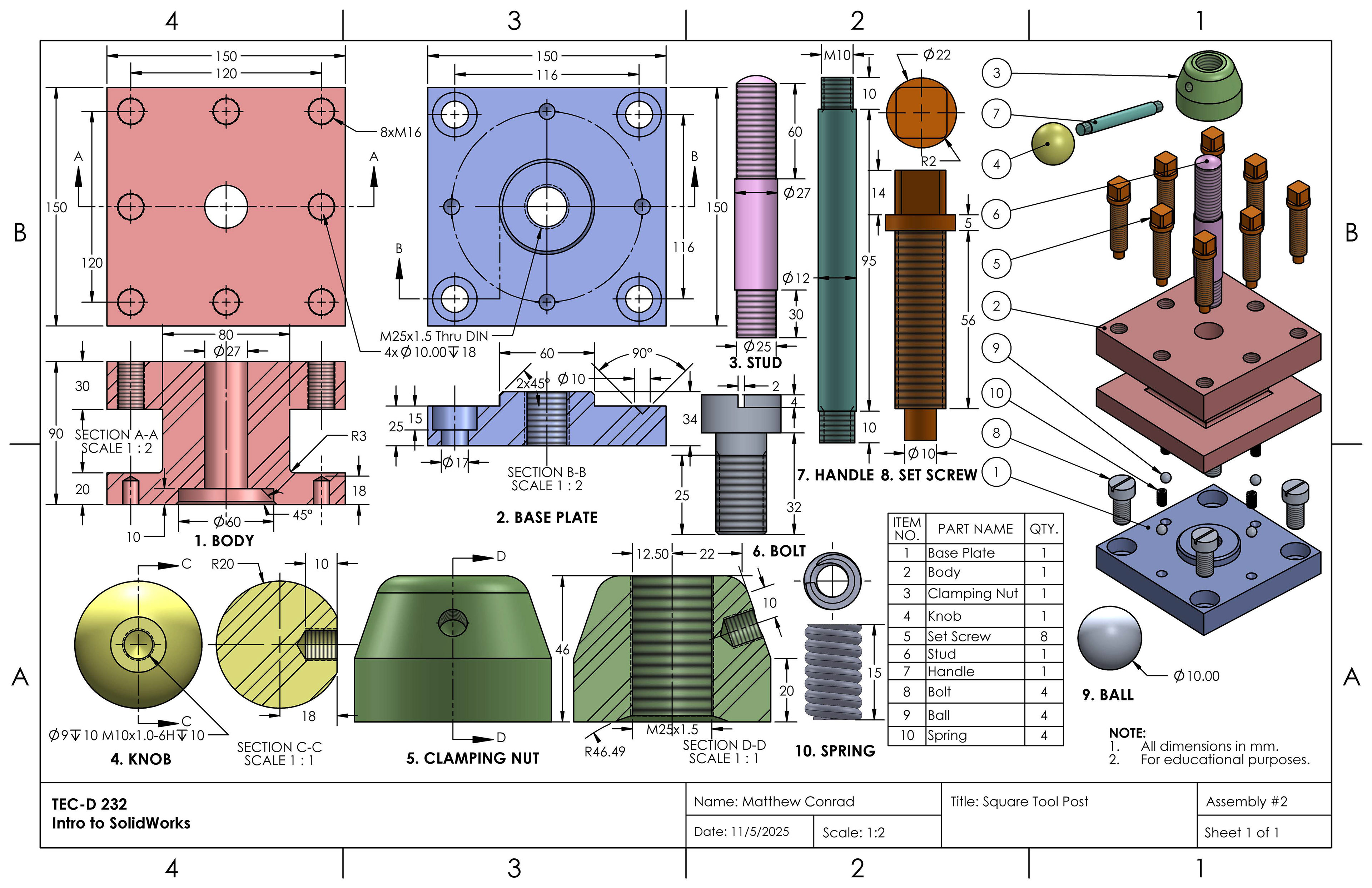

Square Tool Post - Completed Assembly Drawing
